IP-2000-DC
This is a very small and inconspicuous dome camera, that is ideally suited for discreet survaillance, for example in shops. It has a extra shutterproof (IK10) dome and hidden cables make sabotage proof. Furthermore the IP-2000-DC detected other kinds of sabotage, for example painting the dome, and gives an alarm. The alarm can be silent, an e-mail or whatsapp, or the camera can also be linked to a traditional alaram system. And it is possible to send the records and alarms to an extern security company or monitoring center.
|
|
IP-2000-DC
This is a very small and inconspicuous dome camera, that is ideally suited for discreet survaillance, for example in shops. It has a extra shutterproof (IK10) dome and hidden cables make sabotage proof. Furthermore the IP-2000-DC detected other kinds of sabotage, for example painting the dome, and gives an alarm. The alarm can be silent, an e-mail or whatsapp, or the camera can also be linked to a traditional alaram system. And it is possible to send the records and alarms to an extern security company or monitoring center.
| Functions | |
 | Best Image Sensor Technology Sensivity: 1,8 Lux at color modus and up to 0,1 Lux at black/white modus |
 | Fast Processor Technology Up to 30 frames/16 MBit pro second, supports constant or dynamic bit rate |
 | Multible Interfaces 10/100 MBit BASE-TX, RJ-45, RS232 |
 | Power over Ethernet Power and network over just one CAT5 cable |
 | IP66 certified Extra waterproof, hose water protection |
 | IK10 vandalismproof Extra stout aluminium casing and shutterproof plexiglass dome (up to 20 Joule) |
| Features | |
| Image sensor | 3 megapixel CMOS |
| Lens | 3,6 mm (optinal 2,8 mm, 6 mm, 8 mm) |
| Frame rate | Up to 30 frames/16 MBit per second |
| Illumination | Infrared LEDs, reach: up to 15 m, dimable |
| Backlight compensation | Adwanced WDR (Wide Dynamic Range) |
| Color-encoding system | PAL or NTSC |
| Dome | Anti-fogg-coating |
| Max. resolution | 2048×1536 at max. resolution 1920×1080, or 1280×720 , 25 or 30 frames/sec |
| Alternative resolution | 704×576, 352×288 (25 or 30 frames/sec) |
| Image compression | H.265 or MJPEG |
| Storage | Extern |
| Power over Ethernet | Yes |
| Interfaces | 10/100 MBit BASE-TX, RJ-45, RS232 |
| WiFi | No |
| Event detection | Network loss, signal loss, alarm input, motion detection |
| Alarm output | E-Mail, Internet Explorer, Software |
| Sabotage protection | Hidden cables |
| Talk back | Optinal integrated microfon |
| Remote access | PC, Smartphone, Tablet |
| Protection class | IP66 (waterproof) IK10 (vandalismproof) |
| Max. huminity | 90 % |
| Operating temperature | -20° to 60° C |
| Operating Voltage | 12 V DC |
| Size (mm) | 54 (h) x 110 (Ø) |
| Weight | 0,25 kg |
IP-2010-DE
This dome camera was made for a extra unobtrusive surveillance. It has an in-built constructon for drop ceilings and the part which keeps outside can be orderd in differnt colours. That makes it possible to integrate this camera in nearly every enviroment. So the IP-2010-DE is perfect for the installation in areas with a high aesthetic standard like chanceries, hotels or bars.
|
|
IP-2010-DE
This dome camera was made for a extra unobtrusive surveillance. It has an in-built constructon for drop ceilings and the part which keeps outside can be orderd in differnt colours. That makes it possible to integrate this camera in nearly every enviroment. So the IP-2010-DE is perfect for the installation in areas with a high aesthetic standard like chanceries, hotels or bars.
| Functions | |
| Best Image Sensor Technology Sensivity: 1,8 Lux at color modus and up to 0,1 Lux at black/white modus |
| Fast Processor Technology Up to 30 frames/16 MBit pro second, supports constant or dynamic bit rate |
| Multible Interfaces 10/100 MBit BASE-TX, RJ-45, RS232 |
| Power over Ethernet Power and network over just one CAT5 cable |
| Features | |
| Image sensor | 2 megapixel CMOS |
| Lens | 4 mm (optional 2,8 or 6 mm) |
| Frame rate | Up to 30 frames/16 MBit per second |
| Illumination | No |
| Backlight compensation | Adwanced WDR (Wide Dynamic Range) |
| Color-encoding system | PAL or NTSC |
| Dome | Anti-fogg-coating |
| Max. resolution | 1280x960 or 1920×1080 bei 30 frames/sec |
| Alternative resolution | 704×576 (30 frames/sec) |
| Image compression | H.264 oder MJPEG |
| Storage | Bis zu 128 GB MicroSD Karte |
| Power over Ethernet | Ja |
| Interfaces | 10/100 MBit BASE-TX, RJ-45, RS232 |
| WiFi | Optional |
| Event detection | Network loss, signal loss, alarm input, motion detection, line crossing |
| Alarm output | E-Mail, Internet Explorer, Software |
| Sabotage protection | Hidden cables |
| Fernsprechfunktion | No |
| Talk back | PC, Smartphone, Tablet |
| Max. huminity | 95 % |
| Operating temperature | -10° bis 40° C |
| Operating voltage | 12 V DC |
| Size (mm) | 93,9 (H) x 121,6 (Ø) |
| Weight | 0,2 kg |
IP-2010-D
This dome camera has a manual pan, nearly up to 360° and is able to surveill even areas, that are difficult to visit. It has infred LEDs which enables ultra brillant videos in the dark. With its water- and schutterproof housing the IP-2010-D is also suitable for outdoor installation. In the opposite of smaller dome cameras, everybody identify this as a surveillance camera, so it scares many offenders
|
|
IP-2010-D
This dome camera has a manual pan, nearly up to 360° and is able to surveill even areas, that are difficult to visit. It has infred LEDs which enables ultra brillant videos in the dark. With its water- and schutterproof housing the IP-2010-D is also suitable for outdoor installation. In the opposite of smaller dome cameras, everybody identify this as a surveillance camera, so it scares many offenders
| Functions | |
| Best Image Sensor Technology Sensivity: 0,1 Lux at color modus and 0 Lux at black/white modus |
| Fast Processor Technology Up to 30 frames/16 MBit pro second, supports constant or dynamic bit rate |
| Multible Interfaces 10/100 MBit BASE-TX, RJ-45, RS232 |
| Power over Ethernet Power and network over just one CAT5 cable |
| IP66-zertifiziert Extra waterproof, hose water protection |
| IK10 vandalismproof Extra stout aluminium casing and shutterproof plexiglass dome (up to 20 Joule) |
| Features | |
| Image sensor | 4 megapixel CMOS |
| Lens | 2,8 mm, 4 mm, or 8 mm |
| Frame rate | Up to 30 frames/16 MBit per second |
| Illumination | Infrared LEDs, reach: up to 30 m |
| Backlight compensation | Adwanced WDR (Wide Dynamic Range) |
| Color-encoding system | PAL or NTSC |
| Dome | Anti-fogg-coating, shutterproof |
| Max. resolution | 2688×1520 at 20 frames per sec 1920×1080, or 1280×720, 25 or 30 frames/sec |
| Alternative resolution | 640x360, 352×288 (25 or 30 frames/sec) |
| Image compression | H.264 or MJPEG |
| Storage | Up to 128 GB MicroSD card |
| Power over Ethernet | Yes |
| Interfaces | 10/100 MBit BASE-TX, RJ-45, RS232 |
| WiFi | Optional |
| Event detection | Network loss, signal loss, alarm input, motion detection, line crossing |
| Alarm output | E-Mail, Internet Explorer, Software |
| Sabotage protection | Hidden cables |
| Talk back | Integrated mikrofon |
| Remote access | PC, Smartphone, Tablet |
| Protection class | IP66 (waterproof) IK10 (vandalismproof) |
| Max. huminity | 95 % |
| Operating temperature | -30° to 60° C |
| Operating voltage | 12 V DC |
| Size (mm) | 82 (h) x 111 (Ø) |
| Weight | 0,5 kg |

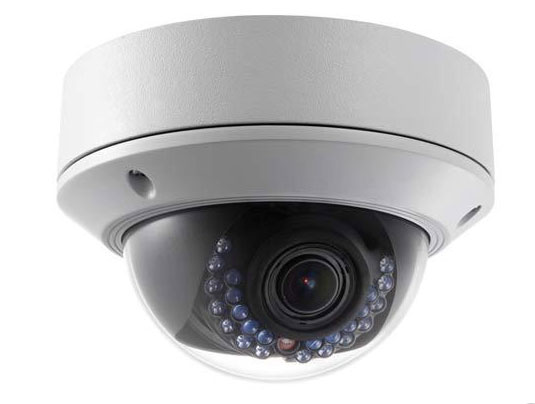

IP-2000-VPD
The IP-2000-VPD was created to brave even hardestconditions. It is IP66 waterproof, that meens that even the pressure of a fire hose can not harm it. And it has an IK10 certification, on of the highest shutterproof classes. So it survive hardest blows like windthrows, malfunction in the industry or vandalism. No mader if it is installed at a factory building, a defecator or a station forecourt – this camera makes allways brillant videos and images, at day and night. This ensure its 3 megapixel sensor and the infraret lights. Furthermore it has a special software (Smart-Surveillance) which can detect faces, entering persons or the loss of objects in a scene.
|
|
IP-2000-VPD
The IP-2000-VPD was created to brave even hardestconditions. It is IP66 waterproof, that meens that even the pressure of a fire hose can not harm it. And it has an IK10 certification, on of the highest shutterproof classes. So it survive hardest blows like windthrows, malfunction in the industry or vandalism. No mader if it is installed at a factory building, a defecator or a station forecourt – this camera makes allways brillant videos and images, at day and night. This ensure its 3 megapixel sensor and the infraret lights. Furthermore it has a special software (Smart-Surveillance) which can detect faces, entering persons or the loss of objects in a scene.
| Functions | |
| Best Image Sensor Technology Sensivity: 0,1 Lux at color modus and 0,005 Lux at black/white modus |
| Fast Processor Technology Up to 30 frames/16 MBit pro second, supports constant or dynamic bit rate |
| Multible Interfaces 10/100 MBit BASE-TX, RJ-45, RS232 |
| Power over Ethernet Power and network over just one CAT5 cable |
| IP66 certified Extra waterproof, hose water protection |
| IK10 vandalismproof Extra stabiles Extra stout aluminium casing and shutterproof plexiglass dome (up to 20 Joule) |
| Features | |
| Image sensor | 3 megapixel CMOS |
| Lens | 2,7 - 12 mm, manual zoom |
| Frame rate | Up to 30 frames/16 MBit per second |
| Illumination | Infrared LEDs, reach: up to 15 m, dimable |
| Backlight compensation | Adwanced WDR (Wide Dynamic Range) |
| Color-encoding system | PAL or NTSC |
| Dome | Anti-fogg-coating |
| Max. resolution | 2048×1536 at max. resolution 1920×1080, or 1280×720 , 25 or 30 frames/sec. |
| Alternative resolution | 704×576, 352×288 (25 or 30 frames/sec) |
| Image compression | H.265 or MJPEG |
| Storage | Extern |
| Power over Ethernet | Yes |
| Interfaces | 10/100 MBit BASE-TX, RJ-45, RS232 |
| WiFi | No |
| Event detection | Network loss, signal loss, alarm input, motion detection |
| Smart Surveillance | Softeware detects faces, line crossing, scene changing etc. |
| Alarm output | E-Mail, Internet Explorer, Software |
| Sabotage protection | Hidden cables |
| Talk back | Optinal integrated microfon |
| Remote access | PC, Smartphone, Tablet |
| Protection class | IP66 (waterproof) IK10 (vandalismproof) |
| Max. huminity | 90 % |
| Operating temperature | -20° to 60° C |
| Operating Voltage | 12 V DC |
| Size (mm) | 119 (h) x 151 (Ø) |
| Weight | 1,25 kg |
